BMWLink - E36X

DETAILS

Easy to install. Affordable. Reliable.

G4X PlugIn ECUs offer the latest in engine management technology, designed to easily maximize the potential from your car.

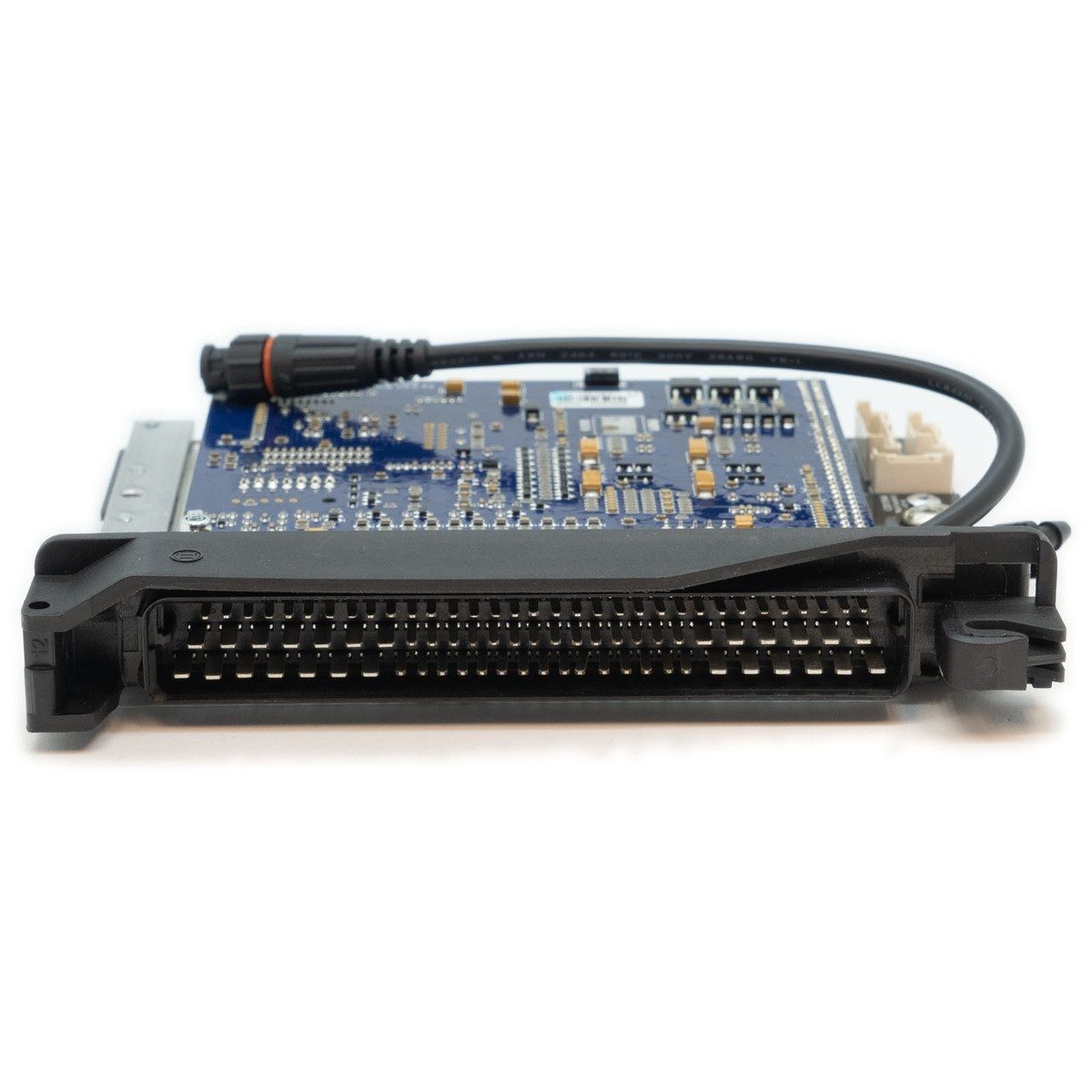

This ECU fits inside the factory OEM enclosure. Installation is a breeze, with no alteration of the factory wiring loom required for the models listed below.

This ECU is designed for the E36 M50TUB25 engine.

• Please check your connector matches the header in the listed photo before purchasing.
• This ECU only works with the Engine Code M50TUB25 (Bosch ECU from factory).
• Works with manual & automatic transmissions.
• Built in 4 Bar MAP sensor or 7 Bar MAP sensor included.
• Most factory features are supported.
• Check the features tab for I/O expansion options .
• This ECU will need a modification before E-Throttle is usable.

Suitable applications:

M50TUB25 engine with the Bosch M3.3.1 ECU from factory

FEATURES

G4X PlugIn Key Features (where applicable):

Up to 6D fuel and ignition mapping

Precision closed loop cam control (four cam, independent control)

Sequential fuel delivery

Digital triggering, all OEM patterns

OEM idle hardware supported

5D boost control with three switchable tables

Motorsport features - antilag, launch, flat shift

Continuous barometric correction (on board)

CAN port

QuickTune - automated fuel tuning

Individual cylinder correction

USB tuning cable included

Stats recording into on-board memory

Gear compensations for spark, boost and fuel

Real time selectable dual fuel, ignition and boost maps

Sync and crank sensors can be a combination of Hall effect, variable reluctance or optical

Boost control referenced to gear, speed or throttle position

512 mega bytes data logging memory

Staged injection

Knock with "windowing"

Expansion connector - The following expansion connector inputs/outputs are provided:

TEMP3 Temperature sensor input

TEMP4 Temperature sensor input

VOLT4 Analog 0-5V input

VOLT5 Analog 0-5V input

DI8 Digital Input

DI7 Digital Input

+5V Low Current +5V Supply

GND Sensor Ground Only

*Please see the PC Link Help file for details regarding installing the Expansion Cable.
