Link CAN Keypad 4 button

DETAILS

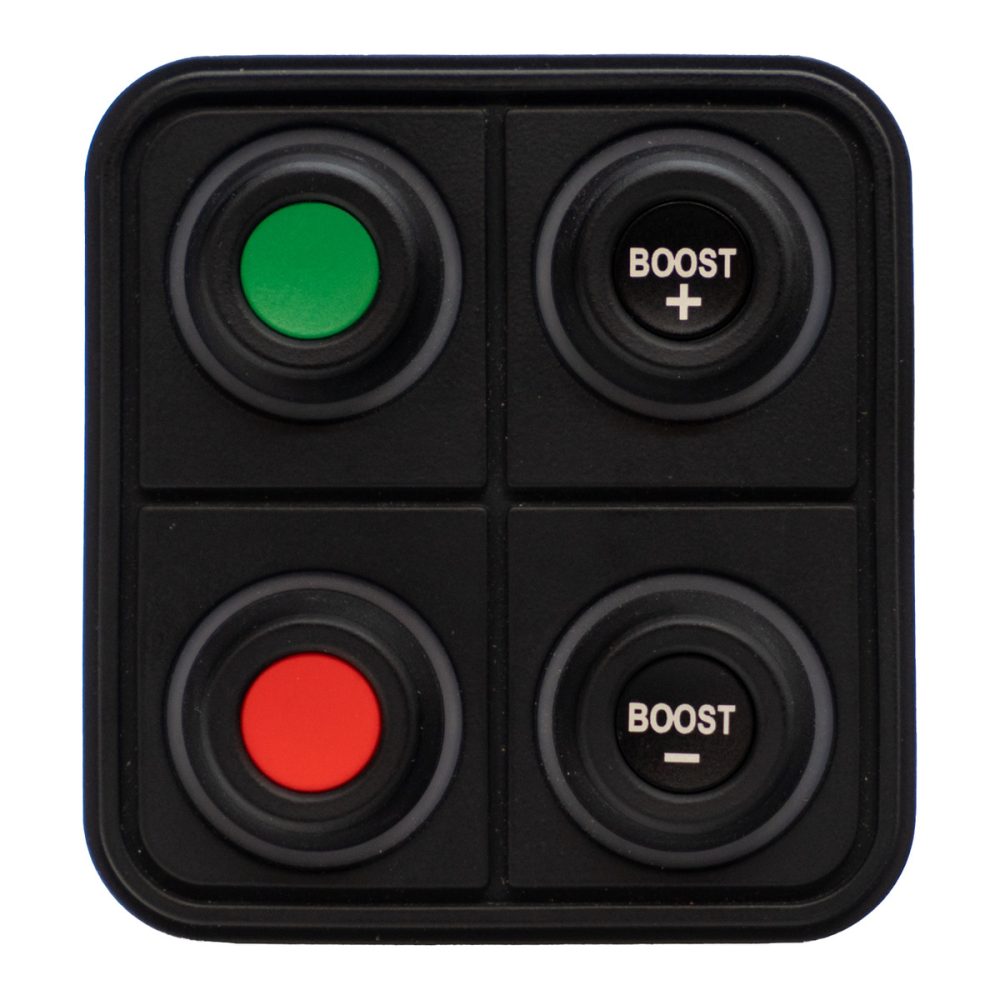

Rugged 4 key CAN Keypad with interchangeable 15mm inserts (sold separately).

Custom button inserts and configurable RGB indicator rings per button allow for extremely flexible set-ups.
The keypad is designed for ultimate reliability - IP67/IP69K water and dust resistant, -40 to +70 operating temperature range, UV 400hrs, salt spray resistant and switches rated to 3 million operations.
Can be installed both inside and outside, perfect for street, track and off-road use.

Note: Keypad ships with empty button inserts, inserts need to be selected and purchased individually. 1 x Link ECU Logo Button Insert included in box loose.

Features:

•CAN Configurable with G4X PC Link – Change LED backlight, individual button indicator ring colour, programmable to show change in status, flashing option, multiple modes including momentary, latched and toggle.

•Customizable Button Inserts – The replacement system for individual inserts makes modifying the keypad layout simple and economical.

•IP67/IP69K Waterproof rating – Guaranteed to be dust tight and sealed against water immersion to a depth of 1 meter for up to 1 hour. The IP69K rating provides protection against high pressure water at high temperature spray downs.

•Compatible with all G4X ECU’s. Built-in support from G4X PC Link vers 6.22 onwards

Box Contents:

1 x 4 Button CAN Keypad

1 x DTM4 Mating Connector Kit

1 x Link Sticker

1 x Keypad Button Insert – Link Logo

FEATURES

Specifications:

Connector - DTM4 Connector for CAN and Power (Black = Ground, Red = Power, White = CAN High, Blue = CAN Low)

Switch Life - 3 million operations

CANopen Node ID – 0x15 (21)

Default Baud Rate - 1000kbit/s

Ingress protection Rating – IP67/IP69K

Chemical Resistance - Deet, Engine Cleaner, Isopropyl Alcohol, Suntan Lotion, Multi-Purpose Cleaner, Orange Citrus Cleaner, Muriatic Acid

UV Protection - UVB 400 hours

Salt Spray Per - ASTMB117

Dimensions – 65mm (W) x 70mm (H)

Mounting Specs:

Mounting Stud Gap (Centre to Centre) 28.8mm

Nuts thread: #10-32

Maximum torque: 0.8Nm
